Unleash the power of Blender's Shader Editor
4K Loops by Eric Purcell:
How to install:
Supported Blender versions: 2.83.5 and up
Go to Edit > Preferences > Add-ons > Install
Browse to where the zip file is located, select it, then enable the add-on
Recommended Update Guide:
Close all open sessions of Blender
Open a new Blender session
Go to Edit > Preferences > Add-ons
Locate FxNodes, disable the addon and press remove
Press Install and Locate the new version, then enable the addon
for any help contact: firstname.lastname@example.org
after installation, new nodes will be available for you to add in shader editor add menu
Included Text Node
Add-on and pack version unified.
Optional FxNodes panel with search box.
Landscape Slope Factor node.
Simplex Noise and Grid nodes.
Fixes and Improvements to existing nodes.
Scatter 1 and 2 replaced by "Voronoi Distribute"
Landscape Slope Factor
Simplex Noise and Grid
New optional node panel
Add-on V0.2 (Pack V5.0):
Critical improvements to add-on installation.
New Advanced Tile node, replaces Tile and Tile Offset, with auto centering, better tile coordinates handling.
New Voronoi 2D, replaces Tileable Voronoi and Animatable Voronoi 2D
New Perlin 2D tileable pattern.
various improvements and bug fixes, socket/input renames.
Add-on first release V0.1 (Pack V4.9):
The shader pack is now an add-on!
It creates new categories in the shader editor's add menu (Shapes, Patterns, Mappings, Utilities and Fractals)
New nodes: Flipbook, Radial Symmetry 1 (new) & 2 (old), Truchet, Compare Color (similar to keying in compositor), and more
Numerous fixes and improvements to: Normal Blend Angle (minor fix), Select Shader ID Map (redesigned), and more)
Added Documentation, updated artwork
Redesigned most nodes trees (Brick Mapping, Threads 1&2, Scatter 1&2, Edge Detection (Now "Edge Detection Approx."), Whirl (Now "Vector Whirl'), Mirror, and a lot more)
More useful output sockets
Updated Normal Blending Nodes, now both methods output color normal map and doesn't depend on mesh normal
Fixed Edge Detection workaround, works better in both Eevee and Cycles
Added more node trees ("To Normal Map", "Stripes", "Mix Vector", and more!)
Some input sockets were removed to keep cluttering down.
More useful naming
Added automatic coordinates detection for shapes and patterns
Added Parallax Mapping, Animatable Voronoi, Material ID select, Color Select, Sierpnski, and a lot more!
Fixed various bugs
Fixed "Normal Blend Angle" node
Updated product description and artwork
Documentation and Examples
Adding a node:
Shader Editor Add Menu (default shortcut: Shift+A).
Search by name (Shader Editor > Add > Search).

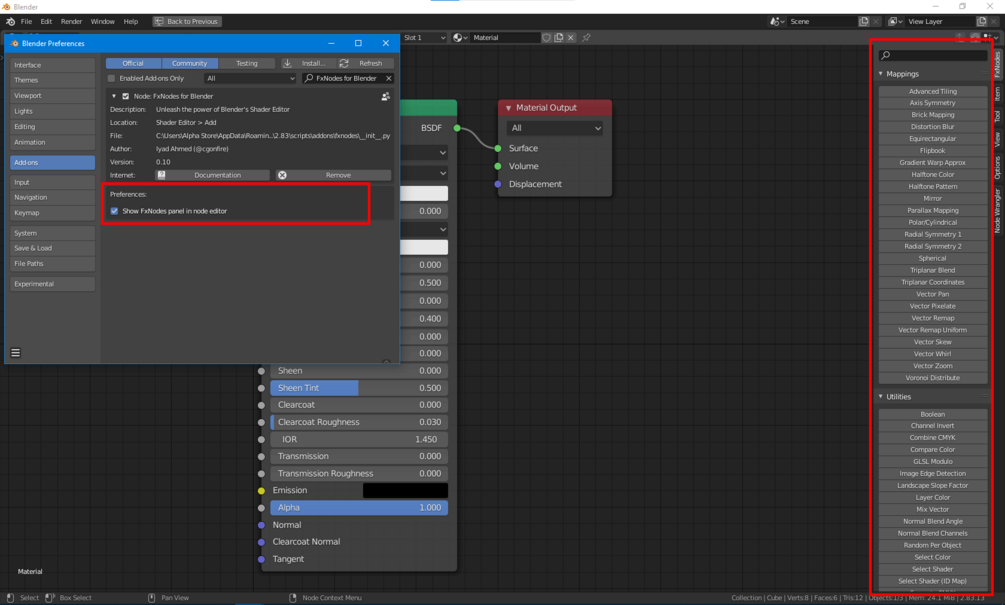

FxNodes panel (Shader Editor > N-panel > FxNodes tab), the panel also has a search box.
Shapes use Object coordinates by default (when no link is connected to "Vector" Socket), this important to keep in mind while using different Texture Coordinates with shapes.
Shape nodes typically have Value output (smooth gradient), and Mask (matte).
List of all nodes (no particular order):
Normal Blend Angle, blend two normal maps, this method is better for preserving detail
Normal Blend Channels, somewhat faster, good detail preservation
To Normal Map, convert height map to proper normal map
Select Color, select from multiple colors/texture using index
Select Shader (ID map), use ID map to mix between shaders
Compare Color, mask out a color from image, similar to "Color To Mask" in SD, with threshold and contrast
Edge Detection approx.
Boolean, bool operations for black and white masks, OR, AND, subtract, difference
Separate and Combine CMYK
Random Per Object, random color and value (controllable range) per object
Channel Invert, inversion sliders for 3 channels
Height Mix, mix height maps
Layer Color, layer like mixing between two layers, by defining alpha for each layer
World To Tangent, convert vector from world space to tangent space
World Camera Location, camera location in world space
GLSL Modulo, modulo operation identical to GLSL (useful for advanced shaders)
Landscape Slope Factor: blend factor for landscape geometry, 0 being flat, 1 being steep
Advanced Tile, tiling with Quincunx flip option, controllable tile dimensions, array mode with auto centering
Axis Symmetry, symmetry for X, Y, Z, with individual sliders
Brick Mapping, brick mapping with correct per brick position and UVs, with auto align UV to brick border option, also mortar size and mortar smooth option, also has per tile random color and value
Equirectangular, convert coordinates to equirectangular
Gradient Warp approx.
Halftone Color/Halftone Pattern
Mirror, mirror coordinates using a mirroring normal and position
Parallax Mapping, simple single iteration non-steep parallax
Polar/Cylindrical, polar coordinates
Radial Symmetry 1, easier to use than 2
Radial Symmetry 2
Voronoi Distribute: repeat texture using Voronoi Coordinates
Spherical, spherical coordinates
Tri-planar Blend and Tri-planar Coordinates, used together for tri-planar blending of procedural shaders, since image textures already have that option
Vector Pan, translate coordinates using a specified speed and direction
Vector Pixelate, quantize coordinates
Vector Remap Uniform, linear remapping of vector coordinates, while keeping dimensions square
Vector Remap, linear remapping of coordinates
Vector Skew, skew texture coordinates
Vector Whirl, whirl texture coordinates
Vector Zoom, zoom up to specific location
Perlin 2D, tile-able Perlin noise
Voronoi 2D, tile-able and animatable Voronoi
Hexagon Tiles, hexagonal tiles with correct per tile position and UV, distance output can be used to get SD "Alveolus" pattern, also has hexagonal output for sharp corners, also has per tile random color and value
Linear Gradient, gradient with controllable start and end points
Threads 1, fabric thread pattern
Cross Wave, interesting organic pattern, similar to gyroids, has multiple metrics (outputs), metric 2 looks like "Dents" noise in C4D
Smooth Tiles, square tiles with smooth corners
Simplex Noise 3D: 3D implementation of Simplex Noise
Simplex Grid: Triangular Grid
Regular Polygon, n-sides polygon
Rounded Rectangle, rectangle with beveled corners, has bevel clamp option
Petal 2 and Petal 4, dual and quad petal shape
Rose, n-petal rose
Superellipse, general form shape with parameters
Triangle, triangle defined by 3 points
Circumcircle, circle going through 3 points
Metaball, Metaball Output, metaballs in shader
Ring 1, ring shape
Ampersand Curve, ornamental shape
Astroid, astroid shape
Bean, bean shape
Bicorn, bicorn hat like shape
Bicupsid Curve, ornamental shape
FxNodes for Blender (Add-on) + Blender Puddle Shader + Tex Node .blend file (Contains node groups)
